color-sorter

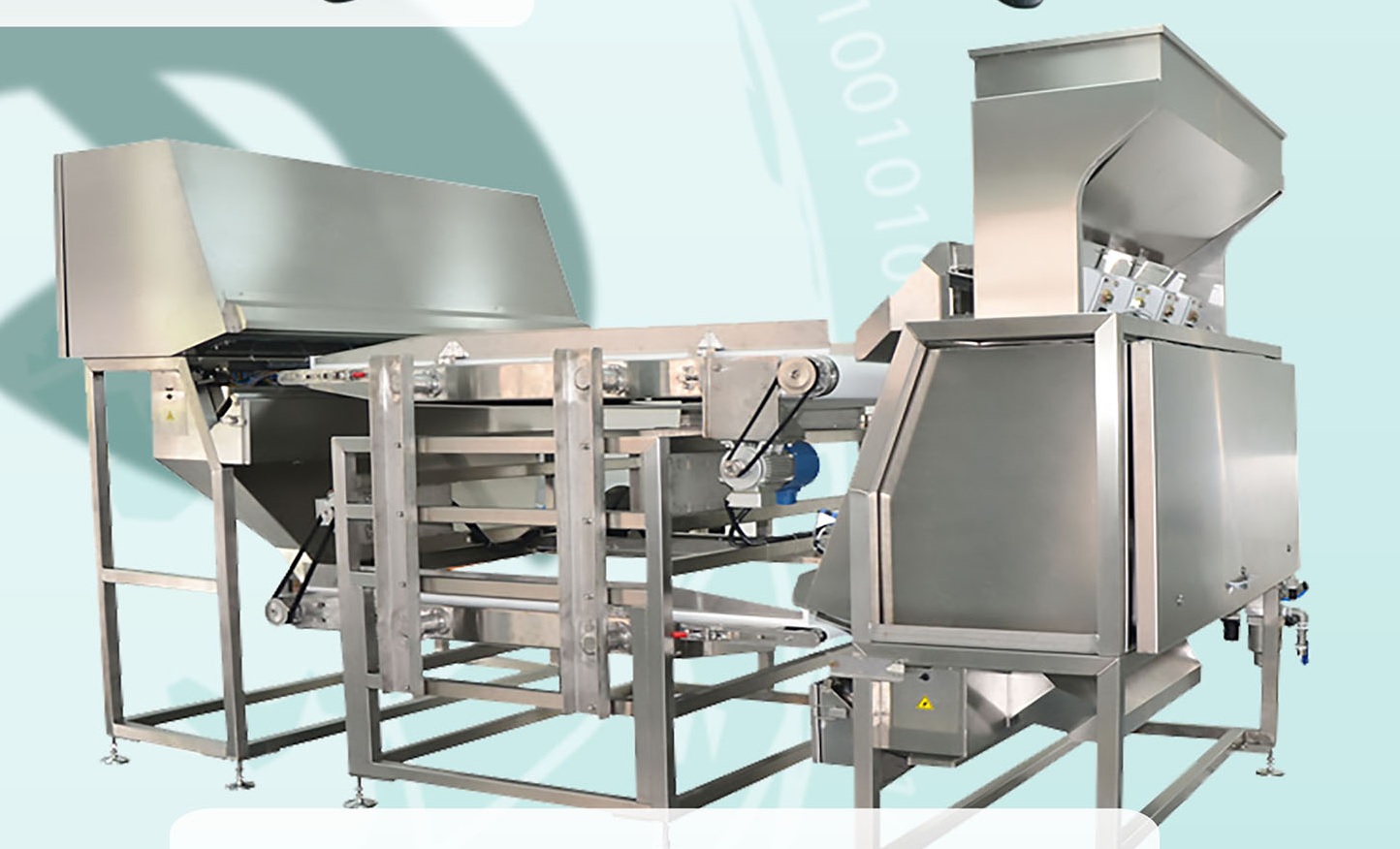

Cashew kernel color sorting machine

Specification

  • Capacity (T/h): 0.8~3
  • Voltage(V): 180~240(50HZ)
  • Power(kW): 4.5
  • Air pressure (MPa): 0.6~0.8
  • Air Consumption (m3/min): <4.5
  • Weight (kg): 1500 kg
    Dimension (L x W x H)(mm): 3390 x 2110 x 2360
Product Enquiry

Product Description

Application: color sorter use principle use grading cashew kernel base color of kenel

Processing:  Finished Cashew kernel from peeling machine or grading machine

Feature:

  • Double-layer belt-type – sorts the plastic with high impurity all at once
  • Resorting function available – resorts the accepted and rejected materials to get higher accuracy
  • New LED light source – highly stable power supply, long lifetime, lower use-cost
  • Stainless steel structure – ensures IP66 waterproof grade (IP54 for observation cabinet)
  • World top 2048 CCD sensor – high resolution to detect various materials
  • Leading intelligent shape function – sorts the materials based on size and shape
  • Specialized ejector assembly – increases the sorting accuracy, output and rejection efficiency
  • Self-detection function – automatically detects the fault of ejectors, light source, control board and motor etc.
  • New touch screen – realizes faster and easier operation and maintenace
